Scania Marine Diesel Generators


Scania Marine Diesel Generators

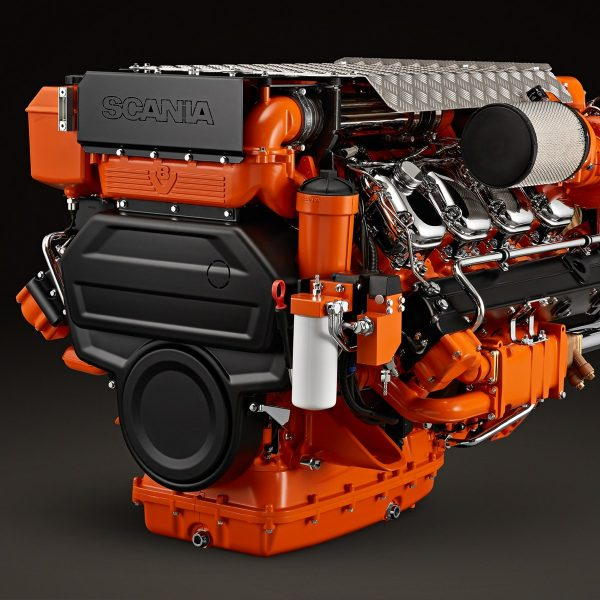

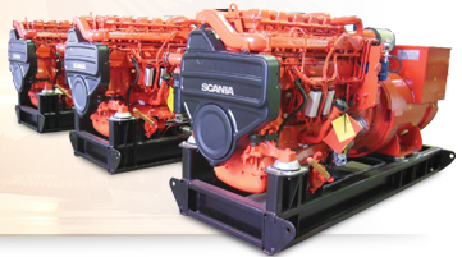

Our specifications list offers a range of Scania marine diesel engine powered generating sets of varying HP and kVA that are heat exchanger cooled as standard, arranged for keel or box cooling as an alternative or radiator cooling is optional on selected specifications. We offer a large menu of ancillary equipment and accessories that you may tailor to suit your individual bespoke needs. Once you have ordered your open framed or acoustically enclosed generating set it is individually built to order and too classification standard if it is required. The generators driven by the Scania engine are, as standard, manufactured by Mecc Alte but other options are available such as Newage Stamford (now Cummins Generator Technology) and Leroy Somer.

Specifications

kVA Rating 3 Phase @ 0.8 PF 50 Hz – 1,500 rpm kVA Rating 3 Phase @ 0.8 PF 60 Hz – 1,800 rpm Generating Set Model
200 200 DI09 074M 04-01
230 230 DI09 074M 04-01
255 255 DI09 074M 04-02
316 316 DI09 074M 04-03
331 331 DI13 074M 04-04
379 379 DI13 074M 04-05
442 DI13 074M 04-01
442 500 DI13 074M 04-02
500 DI16 074M 04-03
505 550 DI16 074M 04-01
530 600 DI16 074M 04-02
565 650 DI16 074M 04-03
600 700 DI16 074M 04-04
635 760 DI16 090M 04-45
Engine Options Generator Options Generating Sets Options

  • Air motor starting in lieu of electric
  • Starter batteries.
  • Exhaust silencers such as ordinary acoustic types or spark arrestor types for dry systems, supplied loose for installation by the customer.
  • Water injection exhaust elbow for wet system in lieu of exhaust elbow and flexible bellows section.
  • Fuel/water separators for use as primary fuel filter.
  • Duplex change over type lube oil filters as may be required by class.
  • Jacket water heater.
  • Additional alarm or protection switches to meet specification requirements and or additional classification society requirements such as unmanned engine room.
  • Certification such as: EIAPP emission certificate; Class survey certificate; Type approval certificate.

  • Anti-condensation heaters
  • Droop current transformer for parallel operation.
  • 3 phase sensing automatic voltage regulator.
  • Volts trim potentiometer, supplied loose for mounting by the customer.
  • Class survey certificate; Type approval certificate.
  • Arranged for parallel operation.
  • Automatic control panel with genset controller.
  • Extended control panels.
  • Mains output panels/circuit breakers/switchboards, etc.
  • Witness tests by classification society surveyor such as Lloyds Register; Det Norske Veritas; Bureau Veritas; American Bureau of Shipping; RINA.
